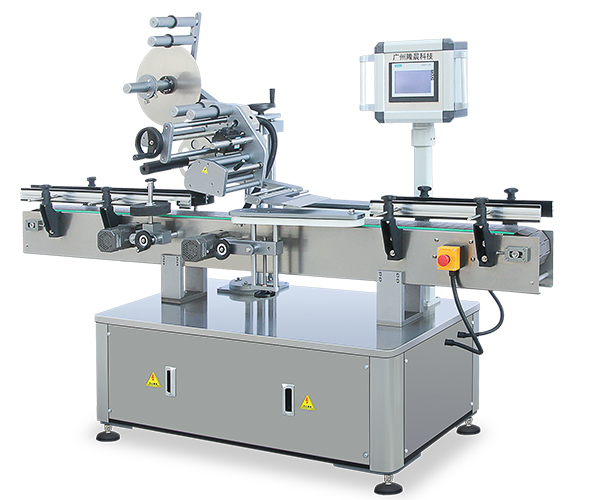

It is suitable for automatic labeling of flat, square and round top flat products of various hard materials in food, electronics, daily chemicals, medicine, cosmetics, alcoholic beverages and other light industrial industries.
| Model | LC-290L |
| Number of Labeling Heads | 1 |
| Suitable Products | 硬质材料的扁形、方形、圆形等产品顶部平面一张标贴标 |
| Conveyor Width | 82.6mm(适合30-100mm宽度或直径产品贴标），可根据贴标产品制作宽度。 |
| Conveyor Height | 880mm ±50mm(可根据需求制作高度) |
| Label Size | 标签宽度 ≤190mm. 超出此范围需要定制加高标头 |
| Label Roll Inner Diameter | 76.2mm |
| Label Roll Outer Diameter | ≤350mm |
| Labeling Accuracy | ≤±1mm 99.7%,标签、瓶体、操作误差不包含。 |
| Labeling Speed | 1~40m/min,3000-12000B/H(不同大小产品，速度不同) |
| Power Supply | 2.2kW 220V/380V 50Hz |
| Machine Dimensions | 2420 × 782 × 1680(mm) |
| Machine Weight | 约280kg |
Product features:
●Humanized touch screen, simple and intuitive operation, complete functions, and rich online help functions;
●Designed for round, flat, square and other bottles with irregular surfaces and curves to ensure labeling accuracy and effect;
●Both side guardrails are equipped with correction devices to ensure the neutrality of labeled products;
●Special elastic label pressing device ensures smooth and beautiful labeling;
●Labeling has counting and parameter storage functions, and 20 sets of labeling parameters can be preset. There is no need to reset when changing labeled products;
●Compared with the belt type, it has a wide range of applications; large conveying capacity; high strength of the traction chain; it can be used for long-distance conveying; the conveying line layout is flexible, and various processes such as classification, drying, cooling or assembly can be carried out during the conveying process;
●It can be used on a stand-alone computer or connected.
