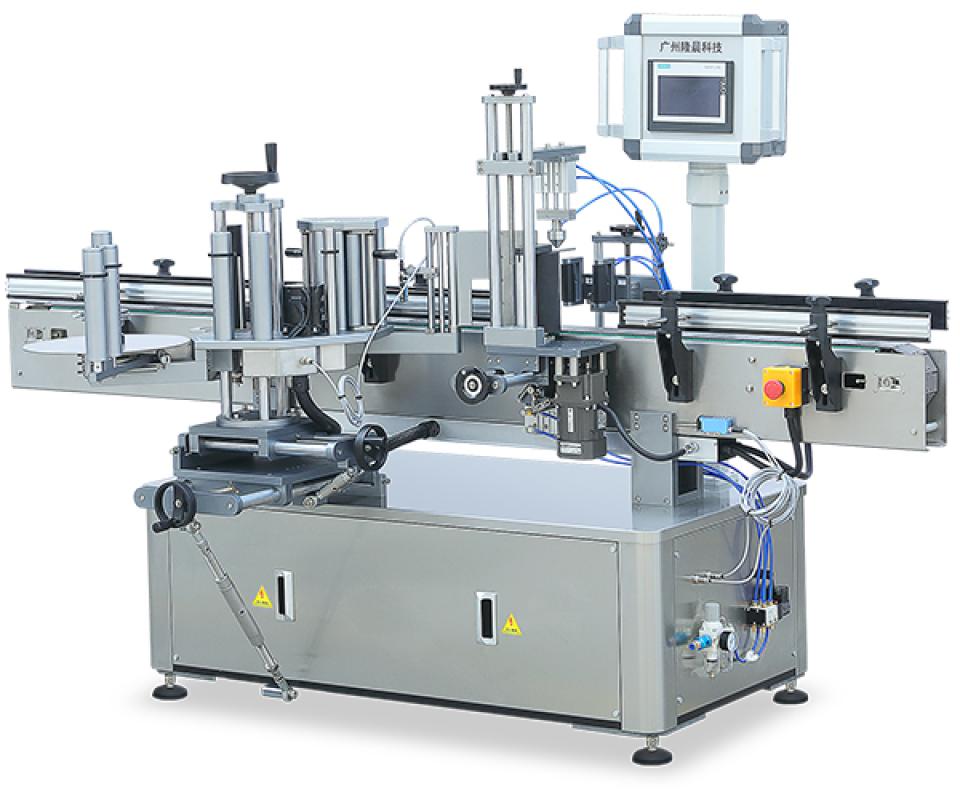

It is suitable for automatic labeling of one week, 2/3 weeks, 1/2 weeks, 1/3 weeks or double labels on round bottles in industries such as medicine, cosmetics, alcoholic beverages, food and daily chemicals.
| Model | LC-360S |
| Number of Labeling Heads | 1 |
| Suitable Products | 硬质材料的扁形、方形、圆形等产品顶部平面一张标贴标 |
| Conveyor Width | 82.6mm(适合30-100mm宽度或直径产品贴标），可根据贴标产品制作宽度。 |
| Conveyor Height | 880mm ±50mm(可根据需求制作高度) |
| Label Size | 标签宽度 ≤190mm. 超出此范围需要定制加高标头 |
| Label Roll Inner Diameter | 76.2mm |
| Label Roll Outer Diameter | ≤350mm |
| Labeling Accuracy | ≤±1mm 99.7%,标签、瓶体、操作误差不包含。 |
| Labeling Speed | 1~40m/min,3000-12000B/H(不同大小产品，速度不同) |
| Power Supply | 2.2kW 220V/380V 50Hz |
| Machine Dimensions | 2420 × 782 × 1680(mm) |
| Machine Weight | 约280kg |
Product features:
●Humanized touch screen, simple and intuitive operation, complete functions, and rich online help functions;
●Wide range of application, can meet the positioning labeling of round bottles for one week, 2/3 weeks, 1/2 weeks, 1/3 weeks or double labels on the front and back. The labeling switch between bottles is simple and easy to adjust;
●The labels have a high degree of overlap, and the label tape uses a deviation correction mechanism to prevent the label tape from deviating. The labeling part xVz and the inclination are adjustable with a total of eight degrees of freedom, and there are no dead ends in adjustment;
●Simple speed adjustment, labeling speed and bottle dividing speed can be adjusted steplessly, and can be adjusted as needed;
●Flexible application, labeling products can be labeled standingly, with automatic bottle separation function, and can be produced by a stand-alone machine or connected to an assembly line;
●High stability, an advanced electronic control system composed of Siemens PLC + Siemens touch screen + Japanese Yaskawa servo + German Sik label electric eye, supports 24/7 operation of the equipment;
●Sturdy and durable, it adopts a three-rod adjustment mechanism, making full use of the stability of the triangle. The whole machine is solid and durable; it is made of stainless steel and high-grade aluminum alloy, complying with GMP production requirements; the label has counting and parameter storage functions, and can preset 20 sets of labeling parameters, so there is no need to reset it when changing labeling products;
●The optional automatic rotary bottle unscrambler is installed at the bottle inlet end, and can also be directly connected to the front-end production line to automatically send bottles into the labeling machine to increase efficiency;
●A printer or inkjet printer can be optionally attached to the labeling head to enable printing of production date, batch number, barcode and other information on online labels;
●One or two labels can be selected for one labeling, and a bottom mechanical positioning mechanism can be installed to realize labeling at designated positions on the circumferential surface.
